The PMX model study fingerprint

A study’s fingerprint is the set of numbers a synthetic study is generated from. For synpmx_model() it is a population PK model, a time course for each PD endpoint, and a summary of the study’s design: its arms, dose schedules, attendance and covariate distributions. Synthetic data is drawn from the fingerprint and random numbers alone, so the fingerprint is everything about the source that can reach the output.

synpmx_model_estimate() returns a fit. The fit holds the fingerprint plus diagnostics for whoever ran it, such as the candidate models and the correlations between covariates and random effects. model_fingerprint() extracts the fingerprint, and that is the object to carry out of the environment that holds the study. synpmx_model_generate() accepts either and reduces a fit to its fingerprint before generating.

This vignette walks through the fingerprint of one study. Read vignette("pmxmodel-demo") first for a run end to end, and vignette("pmxmodel-algorithm") for how each quantity is estimated.

The study

nlmixr2data::warfarin: 32 patients, one oral dose scaled to body weight, a warfarin concentration and a prothrombin complex activity (PCA).

data("warfarin", package = "nlmixr2data")
warfarin <- as.data.frame(warfarin)
warfarin$ntime <- warfarin$time
roles <- pmx_roles(
  id = "id", time = "time", nominal_time = "ntime", dv = "dv", amt = "amt",
  evid = "evid", dvid = "dvid", covariates = c("wt", "age", "sex")
)

fit <- synpmx_model_estimate(warfarin, roles, seed = 1)

This document reads a stored copy of that fit, so it needs no compiler.

fingerprint <- model_fingerprint(fit)
names(fingerprint)
#>  [1] "structural"           "parameters"           "pk_models"
#>  [4] "pd"                   "arms"                 "dosing"
#>  [7] "visits"               "cells"                "discrete"
#> [10] "covariates"           "covariate_effects"    "schema"
#> [13] "roles"                "endpoints"            "quantification_floor"
#> [16] "n_source"             "settings"             "privacy"
setdiff(names(fit), names(fingerprint))  # diagnostics that stay with the fit
#> [1] "candidates"   "design"       "correlations" "censoring"    "timing"
#> [6] "movement"     "fit_subjects" "start_param"  "dose_records"

model_report() summarizes the whole fit in one printout:

model_report(fit)
#> Summarized from the source, not estimated
#>   cohort             32 patients in 1 arm(s)
#>                      all (32)
#>   dose changes       none
#>   visit grid         2 endpoint(s) at 16 nominal time(s), 22 slot(s) in all
#>   visit attendance   share of scheduled slots attended, one rate per
#>                      endpoint: cp 55%, pca 91%
#>   covariates         wt lognormal, age lognormal, sex categorical, drawn
#>                      once for the whole study, independently of the
#>                      profiles
#>   columns emitted    id, time, ntime, dv, amt, evid, dvid, wt, age, sex
#>
#> Values at the lower limit of what was observed
#>     cp                 0.2, no assay limit: half the lowest value several patients reached, rounded down
#>     pca                5, no assay limit: half the lowest value several patients reached, rounded down
#>
#> Each non-PK continuous endpoint, fitted as constant, linear, or exponential
#>   pca                exponential
#>                        plateau          30
#>                        baseline         100
#>                        rate             0.1
#>                        between-subject  0.1 (SD on the log baseline)
#>                        residual         additive 10
#>                        chosen on AIC from constant, linear, exponential
#>
#> PK endpoint for the PopPK model
#>   cp                 inferred from the following data characteristics:
#>                        absent before the first dose
#>                        rises to one peak and comes back down within one
#>                          dose interval
#>   route              oral: the median profile rises to a peak at 9 before
#>                      declining, and 31% of subjects do too
#>   sampling           median 6 distinct times after a dose, 6 after the
#>                      peak: sparse within-subject sampling
#>
#> The PopPK model
#>
#> Estimated by nlmixr2
#>   structural model   2cmt_oral
#>   selected by        two-compartment model passed acceptance checks
#>   fitted on          all 32 patients with a concentration
#>   fixed effects      cl 0.1, v 7, q 0.1, v2 2, ka 0.4
#>   between-subject    cl 0.265, v 0.2, ka 0.548, q 0.0775, v2 0.632 (as SD on the log scale)
#>   residual error     proportional 0.2
#>   time to fit        50.9 s
#>   whole call         51.1 s, against 50.9 s in the fitter
#>
#> Privacy
#>   one patient's pull pass: largest: cp: ka between-subject SD, 9.84 points;
#>                      `model_privacy_checks()` has every check

Every Number in the Fingerprint

warfarin has one PK endpoint, fitted a two-compartment oral model, and one PD endpoint, which makes it a typical small study. Each row below is one number in its fingerprint that was estimated from patients, and model says which part of the fingerprint it belongs to:

PK: the population PK model, a typical value and a between-subject variance per parameter and one residual error.
PD: each PD endpoint’s time course, its shape parameters, the spread of the patients’ baselines and a residual error.
Covariates: a trimmed mean and SD per continuous covariate, and one fewer share than levels per categorical one.
Dose changes: the rates of reducing, skipping and stopping, pooled over the arms, and each reduced dose level as a fraction of the starting dose.
Missed visits: one attendance rate per endpoint. An endpoint every patient attended at every visit has a rate of 1 and is not listed.
Discrete endpoints: one fewer level share than levels for each binary or ordinal endpoint.
Arms and floors: the size of each arm and of the cohort, the lowest value generated for each endpoint without a declared assay limit, and the reference weight where body-weight scaling was requested.

items <- fingerprint_items(fingerprint)
show(items, "Every estimated number in the warfarin fingerprint", paged = TRUE)

counts <- table(factor(items$model, levels = models))
c(counts, total = sum(counts), `planned cycles (protocol)` =
    planned_cycles(fingerprint))
#>                        PK                        PD                Covariates
#>                        11                         5                         5
#>              Dose changes             Missed visits        Discrete endpoints
#>                         3                         2                         0
#>           Arms and floors                     total planned cycles (protocol)
#>                         4                        30                         1

The planned dose times and amounts are the protocol rather than estimates, and are counted apart. So are the nominal visit grid and the description of the table to generate, which are not counted.

Across the Public Studies

The same count for the stored fit of each study in the public-data evaluation. A study with more endpoints, arms or dose levels has more rows, and a PD shape fitted per arm under pd_by_arm = TRUE counts once per arm.

study	patients	PK	PD	Covariates	Dose changes	Missed visits	Discrete endpoints	Arms and floors	total	planned cycles (protocol)
warfarin	32	11	5	5	3	2	0	4	30	1
theo_md	12	11	0	2	3	1	0	3	20	7
mad	60	11	10	3	3	0	3	9	39	36
case1_pkpd	180	11	5	2	3	0	0	7	28	510
wbcSim	45	0	3	0	3	1	0	3	10	1
mavoglurant	120	9	0	8	3	1	0	3	24	1
nimoData	12	9	0	6	3	1	0	3	22	10
pheno_sd	59	9	0	4	6	1	0	3	23	14
mixroute_sim	90	12	0	2	3	0	0	4	21	9
onc_sim	200	11	4	5	4	2	0	4	30	842

The PK model

Structural model

fingerprint$structural
#> [1] "2cmt_oral"
model_candidates(fit)
#>       model converged accepted      aic seconds note
#> 1 2cmt_oral      TRUE     TRUE 922.2948  50.869

By default the fit tries two compartments and falls back to one only if two fail the acceptance checks. pk names a model, or several to compare by AIC.

Parameters

Typical values on the natural scale, the between-subject covariance on the log scale, and the residual error. Every PK and PD estimate in the fingerprint is rounded to one significant figure.

model_parameters(fit)
#> $fixed
#>  cl   v   q  v2  ka
#> 0.1 7.0 0.1 2.0 0.4
#>
#> $omega
#>      cl    v  ka     q  v2
#> cl 0.07 0.00 0.0 0.000 0.0
#> v  0.00 0.04 0.0 0.000 0.0
#> ka 0.00 0.00 0.3 0.000 0.0
#> q  0.00 0.00 0.0 0.006 0.0
#> v2 0.00 0.00 0.0 0.000 0.4
#>
#> $residual
#> $residual$kind
#> [1] "proportional"
#>
#> $residual$cv
#> [1] 0.2

No covariate is in the model: covariate_effects = "none" is the default, so fingerprint$covariate_effects is empty and every synthetic patient’s parameters are drawn from the covariance matrix alone.

fingerprint$covariate_effects
#> list()

The fingerprint holds no patient’s own random effects (empirical Bayes estimates). They are read during estimation and dropped.

warfarin reports four concentrations at or below zero, which is what an assay returns near its limit. They are fitted at half the smallest positive value, and the residual error stays proportional.

Censoring

fit$censoring
#> NULL

warfarin declares no assay limit, so this is empty. Where a study declares one, its below-limit concentrations enter the population fit as censored, and this table gives the share of each endpoint below the limit. On xgxr::case1_pkpd it is 46% of the concentrations, so much of what the PK model knows there is a bound rather than a measurement.

The PD time courses

Each continuous endpoint other than the concentration gets a time course with no exposure term, chosen by AIC from a constant, a linear and an exponential shape. It reproduces the average response over time, which is enough for testing analysis code, and is not an exposure-response model.

lapply(fingerprint$pd, function(shape) c(shape = shape$pd, shape$typical))
#> $pca
#>         shape       plateau      baseline          rate
#> "exponential"          "30"         "100"         "0.1"

show(fit$pd[[1L]]$candidates, "The three shapes, compared on AIC")

Covariates

Each baseline covariate has one distribution for the whole study, and synthetic patients draw their covariates from it independently of everything else. A continuous covariate is a mean and SD on the log scale, taken after the highest and lowest 5% of patients are set aside. A categorical one is a set of level frequencies, keeping only levels at least min_category_patients patients (default 3) hold.

str(fingerprint$covariates, max.level = 2)
#> List of 3
#>  $ wt :List of 3
#>   ..$ kind   : chr "lognormal"
#>   ..$ meanlog: num 4.23
#>   ..$ sdlog  : num 0.18
#>  $ age:List of 3
#>   ..$ kind   : chr "lognormal"
#>   ..$ meanlog: num 3.37
#>   ..$ sdlog  : num 0.34
#>  $ sex:List of 3
#>   ..$ kind       : chr "categorical"
#>   ..$ levels     : chr [1:2] "female" "male"
#>   ..$ probability: num [1:2] 0.156 0.844

Because no covariate is in the PK model, a relationship the real study had, such as heavier patients having a larger volume, is absent from the synthetic data. The fit reports where that happens: the correlation between each covariate and each patient’s random effects, as a diagnostic that stays with the fit.

show(fit$correlations[order(-abs(fit$correlations$correlation)), ],
     "Each covariate against the random effects")

Here weight and sex both move with volume. If the synthetic data needs that relationship, covariate_effects = "auto" adds allometric scaling of clearance and volume on body weight. synpmx_avatar() keeps such relationships without modelling them, because each synthetic patient’s covariates and profile come from the same real patients.

The study design

The design half of the fingerprint is the same as the one synpmx_pca_summarize() builds, from the same code.

Arms

data.frame(arm = fingerprint$arms$arms, patients = as.integer(fingerprint$arms$sizes))
#>   arm patients
#> 1 all       32

Dosing

Each arm has its planned schedule. The levels doses were reduced to, and the rates of reducing, skipping and stopping, are pooled over the arms.

arm <- fingerprint$arms$arms[[1L]]
show(fingerprint$dosing[[arm]]$planned, "The planned schedule")

dosing <- fingerprint$dosing[[arm]]
c(levels = length(dosing$levels), reduction = dosing$reduction,
  interruption = dosing$interruption, discontinuation = dosing$discontinuation)
#>          levels       reduction    interruption discontinuation
#>               1               0               0               0

warfarin is a single dose everyone received, so all three rates are zero and the planned schedule is reproduced exactly. Where patients do reduce or skip doses, the synthetic schedule is drawn before the profile is simulated, so a synthetic patient who steps down gets the lower exposure.

Visits

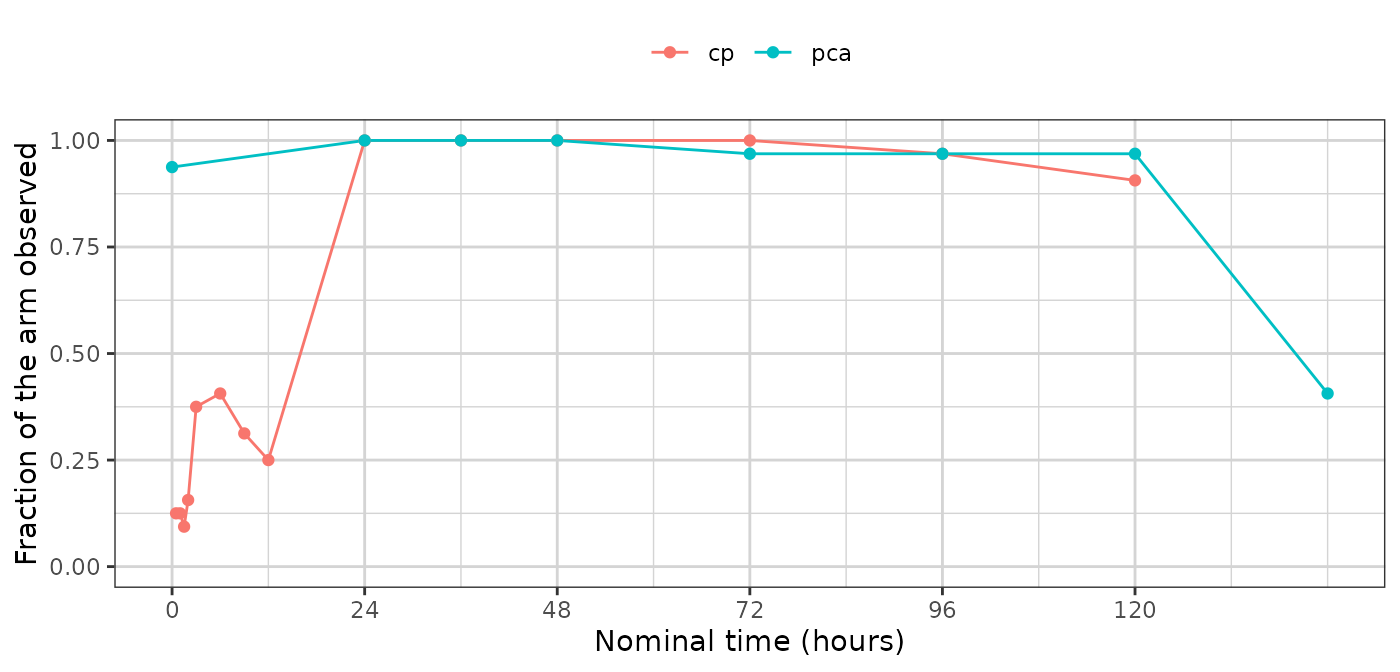

The visits each arm has, and one attendance rate per endpoint. Attendance is drawn visit by visit at generation. The rates, then the number of visits, per endpoint:

rate <- do.call(pmax, unname(lapply(fingerprint$visits, function(v) v$probability)))
signif(tapply(rate, fingerprint$cells$endpoint, max), 3)
#>    cp   pca
#> 0.551 0.906
table(fingerprint$cells$endpoint)
#>
#>  cp pca
#>  14   8

A visit is kept only where at least min_arm_patients patients were observed there.

Schema

The shape of the table to generate: its columns and their classes, the compartment numbers, and any assay limit per endpoint.

fingerprint$schema$columns
#>  [1] "id"    "time"  "ntime" "dv"    "amt"   "evid"  "dvid"  "wt"    "age"
#> [10] "sex"
unlist(fingerprint$schema$cmt_obs)
#> NULL

Generating from it

synthetic <- synpmx_model_generate(fingerprint, n_subjects = 32, seed = 7)
c(rows = nrow(synthetic),
  subjects = length(unique(synthetic$id)),
  valid = validate_pmx(synthetic, roles)$valid)
#>     rows subjects    valid
#>      525       32        1

Where to go next

vignette("pmxmodel-demo"): this generator run on a study end to end.
vignette("pmxmodel-algorithm"): how each quantity above is estimated.
vignette("pca-fingerprint"): the same walk for the PCA generator, which shares the study design and describes the profiles differently.
vignette("scorecard"): the checks that compare generated data with its source.
Privacy protections in the PMX model generator: what protects the fingerprint, and what risk remains.
